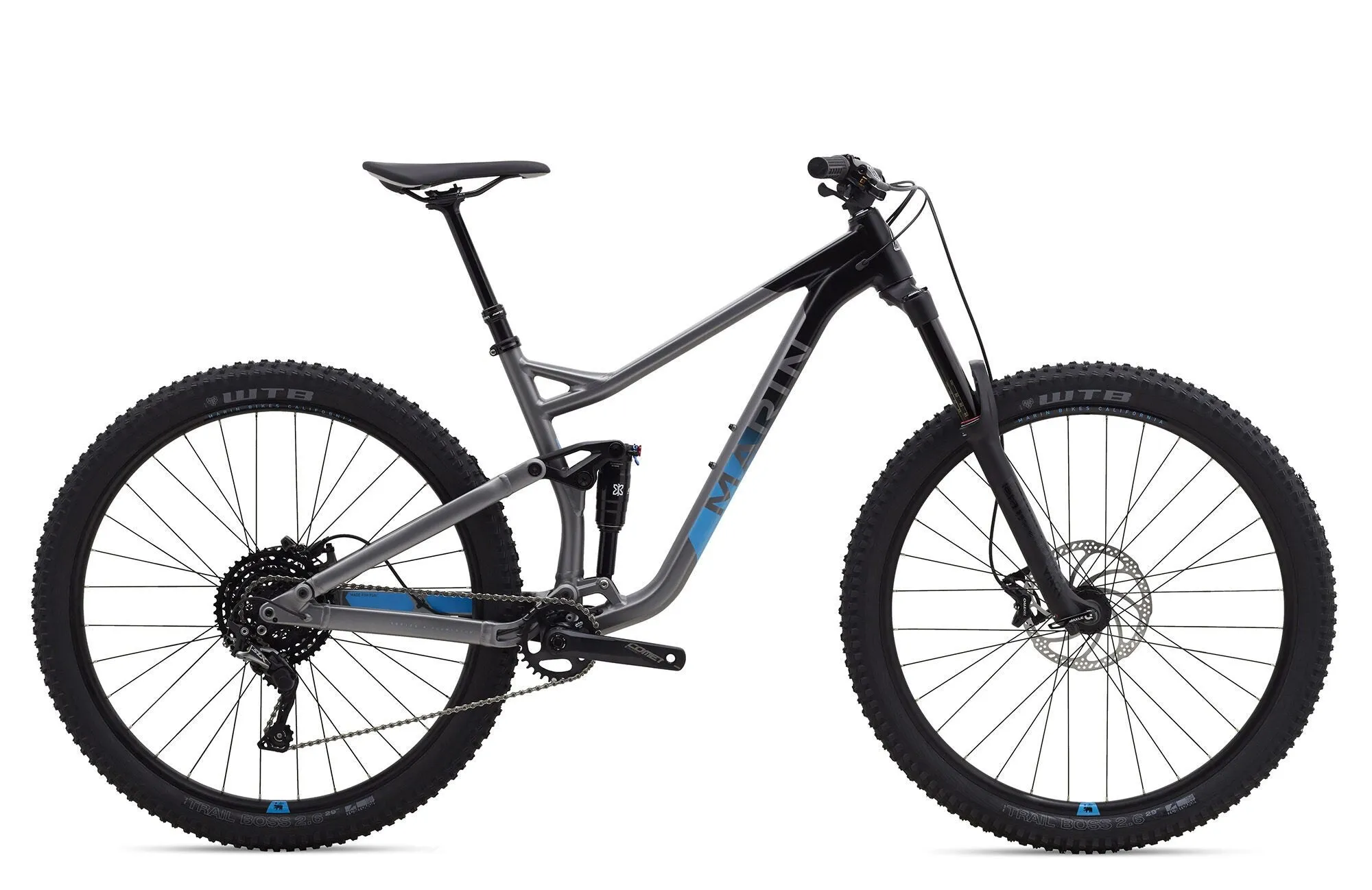

The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
| Frame: | Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Housing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs |
|---|---|
| Fork: | RockShox Yari RC, 29”, 160mm of Travel, Air Sprung, Debonair, Rebound and Compression Adjust, Fast Black Stanchions, 110x15mm Maxle Stealth, 51mm Offset |
| Crankset: | FSA Comet, Modular 1x, 30T Direct Mount Chainring, MegaTooth Technology, Boost Spacing |
| Shifters: | Shimano SL-M7000 1x11 Speed I-Spec II |
| Headset: | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2 |
| Wheelset: | Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, 32H Tubeless Compatible |
| Seatpost: | X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, All Other Sizes: 150mm Travel |
| Derailleur: | Shimano SLX GS Shadow Plus, 11-Speed |
| Stem: | Marin 3D Forged Alloy, 35mm |
|---|---|
| Handlebars: | Marin Mini-Riser, 6061 Double Butted Aluminum, 28mm Rise, 780mm Width, 5º Up, 9º Back |
| Saddle: | Marin Speed Concept |
| Cassette: | e*thirteen TRS Plus 11spd, 9-46T |
| Brakes: | Tektro Orion, 4-Piston Hydraulic Disc |
| Tires: | Vee Tire Flow Snap, 29x2.6”, Tackee Compound, 72 TPI, Tubeless Compatible |
| Bottom Bracket: | External Sealed Cartridge Bearings |
| Pedals: | N/A |
All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.
For all warranty claims, please contact our Warranty Team at . So that we can help you in a timely manner, make sure to include the following:
- 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
- 2. Brief description of the claim
- 3. Photographs
- 4. If the item is a bike or frame, include the serial number
We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!
Warranty does not apply to the following:
- • Any part of a product that has been installed, altered, repaired, or misused
- • Damage from unintended style of riding, abuse, neglect, accident, and racing
- • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
- • Failure to provide regular maintenance of any product
Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.
Note: Warranty is for original owner only.
