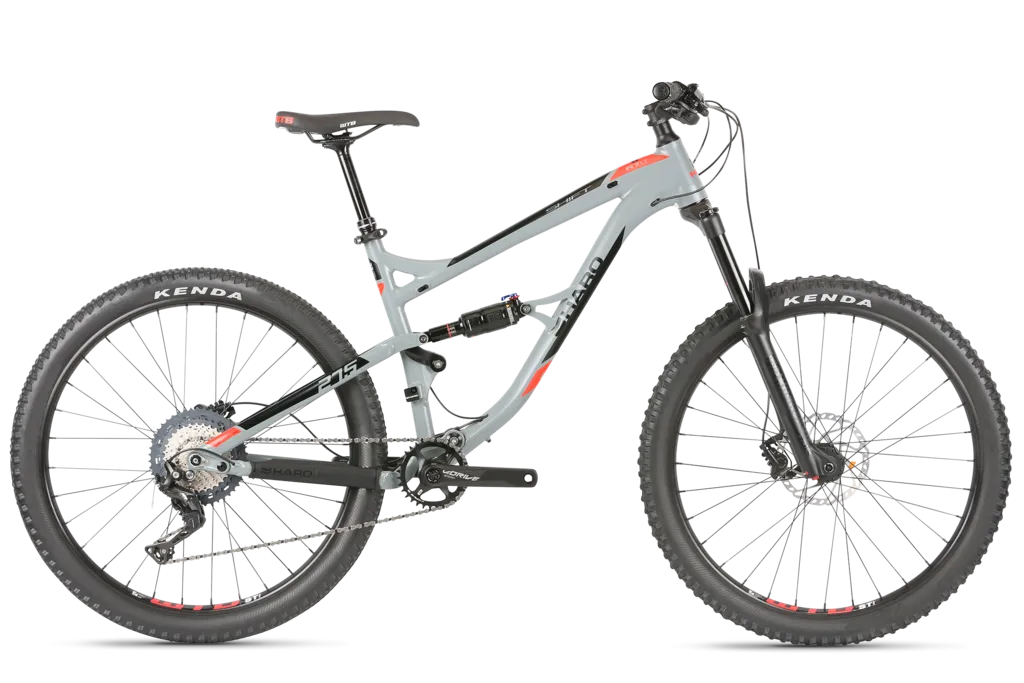

One of Haro's most popular full suspension bikes comes in a 140mm longer travel version. The Shift R7 LT frame features new X6 alloy tubing, an internal head tube and Haro's Four-Bar linkage suspension design. It offers a progressive rear spring curve with its central linkage and chainstay pivots to optimize shock performance and isolate the rear shock from braking forces while keeping the suspension active. The R7 LT uses Rockshox's new Sektor RL Boost suspension fork with 150mm of travel and a Shimano SLX 1x11 drive train fitted with a FSA V-Drive Boost crankset and a 32t alloy chainring for easy climbing. The R7 LT features U28-TL tubeless compatible rims equipped with the new Kenda HellKat and HellDiver 27.5 x 2.4" tires for more aggressive riding and a new X-Fusion Manic dropper post for on-the-fly seat height adjustments.
| Frame: | 6061-T6 series alloy dual suspended 4-Bar linkage frame, 140mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, Boost 12mm thru-axle dropouts |
|---|---|
| Fork: | New RockShox Sektor RL 27.5 B, 1-1/8 - 1.5in tapered alloy steerer, DebonAir; 150mm travel, w/ 15mm Stealth Maxle thru-axle included |
| Crank: | FSA V-Drive Modular w/ 32T Megatooth Alloy Chainring, Boost |
| Shifters: | Shimano SLX M-7000, 1x11-spd, Right only, w/o gear display |
| Headset: | FPD DOZER-1869B w/ 1.5" ACB bottom for 44/56mm head tube, w/ 8mm Top Cone |
| Wheelset: | WTB ST i29 Disc- 27.5" x 32h alloy double wall, Tubeless Compatible |
| Seatpost: | X-Fusion Manic 125 Dropper post w/ shifter-type remote, 7075 alloy, 31.6x125mmx400 / 100x360mm |
| Stem: | Pivit alloy Trail 0 Deg., 4 bolts, ext.: 60mm |
|---|---|
| Handlebars: | Pivit alloy 20mm riser bar 31.8mm, 760mm, 9 Deg. sweep |
| Saddle: | WTB Volt Comp w/ color accents |
| Cassette: | Shimano CS-M7000, 11-spd 11-46T |
| Brakes: | New Shimano Deore hydraulic. BR-MT500, 180/160mm rotors |
| Tires: | Kenda Hellkat Front, HellDiver Rear, 27.5*2.4, 60tpi, wire beads |
| Bottom Bracket: | FSA MegaExo sealed cartridge |
