Model: CMS32

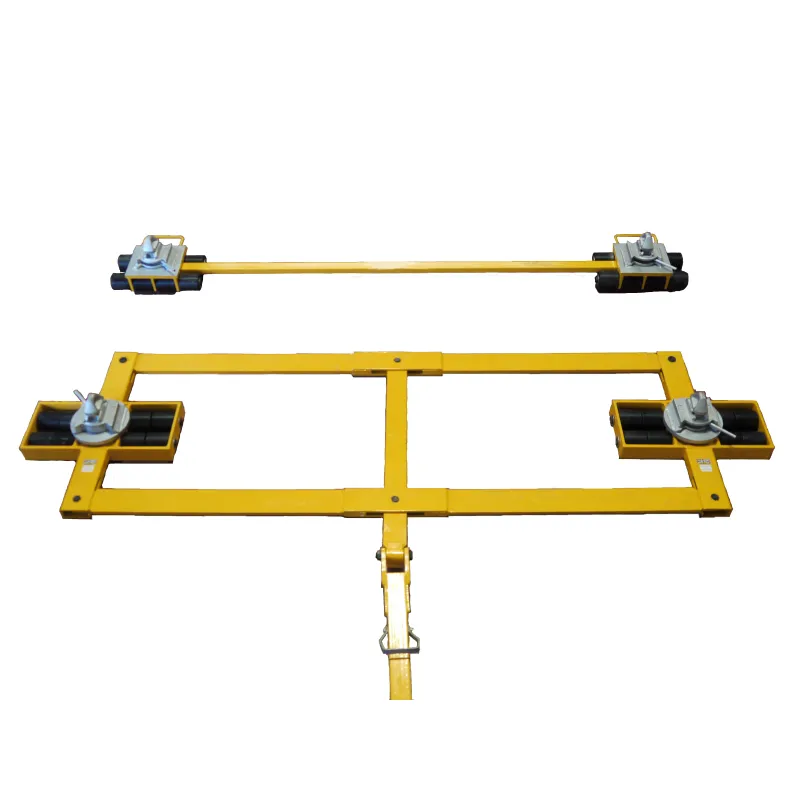

This kit comes complete with x2 front skates inc frame and tow bar, and x2 rear fixed skates inc connecting rod and has a safe working load of 32,000kgs.

The whole frame assembly is held together with pins and circlips.

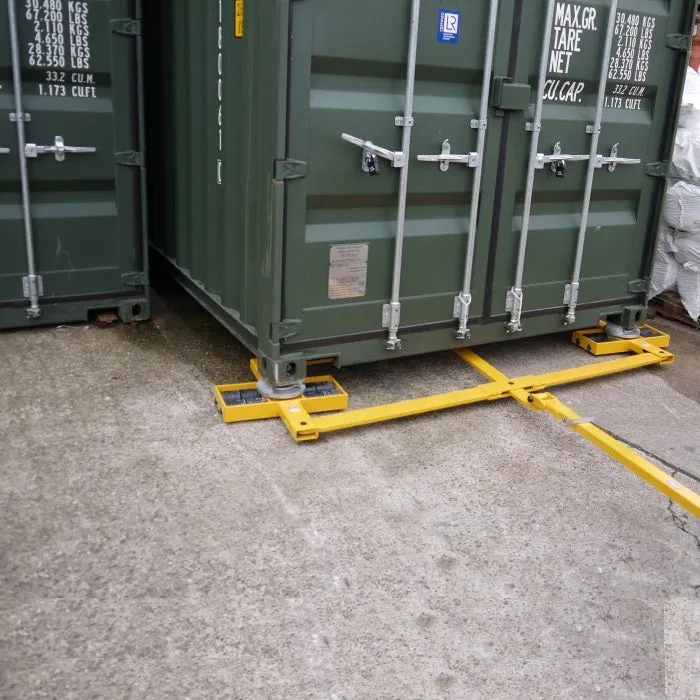

This ideally to be used with the use of toe jacks, you lift the container up and slide the skates into place as appropriate. BE CAUTIOUS WHERE HANDS ARE BEING PLACED. Lower the jacks to ensure the container slides over the ISO mounts and secure in place by using the connecting road to twist lock into place. Removal is the same process in reverse.

Supplied with an E.C Declaration of Conformity.
